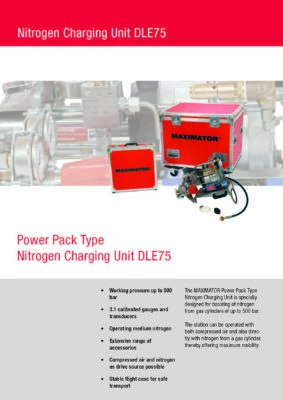

Rental units – N2-charging unit DLE 75

The MAXIMATOR Power Pack Type Nitrogen Charging Unit is specially designed for boosting of nitrogen from gas cylinders of up to 500 bar. The station can be operated with both compressed air and also directly with nitrogen from a gas cylinder, thereby offering maximum mobility.

• Working Pressure up to 500 bar
• 3.1 calibrated gauges and transducers
• Operating medium nitrogen
• Extensive range of accessories
• Compressed air and nitrogen as drive source possible
• Stable flight case for safe transport

Scope of Supply

The MAXIMATOR Power Pack Type Nitrogen Charging Unit DLE75 will be delivered in a compact flight case. The scope of supply comprises the Nitrogen Charging Unit and the accessorie case.

• Power Pack Type Nitrogen Charging Unit DLE75
• Accessories
• Flightcase
• Fastener straps for gas bootle assembly

Accessories

The accessory case for the Maximator Nitrogen Charging Unit contains the Option Measurement Connection and a measurement hose.

• Option Measurement Connection
• Measurement Hose

*not to be used in explosion areas

Connections

• Air Drive Inlet: 1/2“ BSPP
• Pressure Outlet: M16x1,5 (8S)
• Gas Inlet:
  N2 gas bottle connection
• Pressure Release: 1/4“ BSPP

Technical data

Type	Nitrogen Charging Unit DLE 75-1-GG-FEC
Pressure ratio	1:75
Max. working pressure	14 - 550 bar
Operating medium	Nitrogen (other options available on request)
Max. flow capacity	depending on application
Air drive pressure	min. 1 bar - max. 7 bar
Dimensions w/o case (W x D x H)	450 x 550 x 500 mm
Dimensions w. case (W x D x H)	810 x 670 x 760 mm
Weight w/o case	approx. 29 kg
Weight w. case	approx. 62 kg
