Rental units – LM1600 GX170
Maximator Power Packs Liquid can be used for many technical applications in engineering and industry. These units can be operated in Atex Zone 1 and comply with category 2G. They generate hydraulic pressures of up to 4,000 bar safely and very efficiently. They are driven via compressed air ranging from 1 to 10 bar.

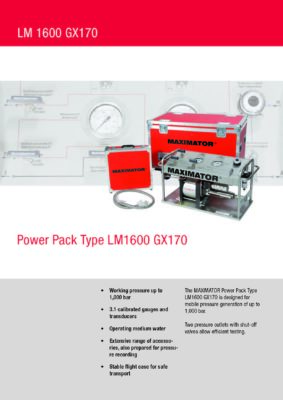

The MAXIMATOR Power Pack Type LM1600 GX170 is designed for mobile pressure generation of up to 1,000 bar. Two pressure outlets with shut-off valves allow efficient testing.
- Working pressure up to 1,000 bar
- 3.1 calibrated gauges and transducers
- Operating medium water
- Extensive range of accessories, also prepared for pressure recording
- Stable flight case for safe transport
Scope of Supply
The MAXIMATOR Power Pack Type LM1600 GX170 will be delivered in a compact flight case. The scope of supply comprises the Power Pack LM1600, the accessorie case and a hose.
- Power Pack LM 1600 GX170
- Accessories
- Flightcase
- Hose
- Stainless steel tray
Accessories

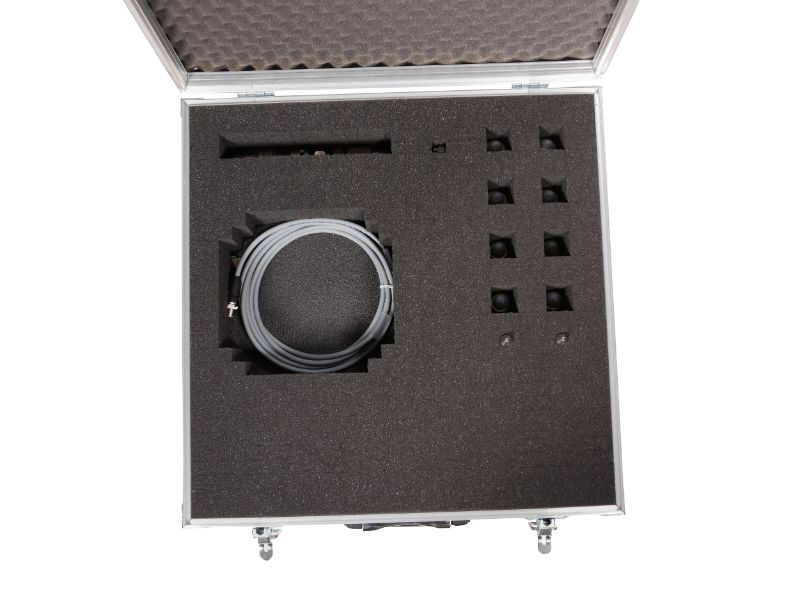

The accessory case for the Maximator Power Pack LM1600 contains various adapters. A pressure transducer together with cable connection is also included and allows digital pressure recording for pressure tests or calibration applications.
- Druckmessumformer 0-1500 bar, 0-10V *
- Adapter :
6M(a)->1/2“(f) BSPP;
6M(a)->FNPT1/2“;
6M(a)->1/4“(f) BSPP;
6M(a)->FNPT1/4“ - Cable Connection 3000 mm
*not to be used in explosion areas
Connections
- Air Drive Inlet: 1/2“BSPP
- Pressure Outlet P1/P2:
4H (9/16-18 UNF) - Measurement Connection:
6M (9/16-18 UNF) - Fluid Inlet: 1“(m) BSPP
- Pressure Release:
6M (9/16-18 UNF)
Technical data
| Type | LM1600-GX170-01-V-6M ATEX |
|---|---|
| Pressure ratio | 1:170 |
| Max. working pressure | <1000 bar |
| Operating medium | Water (other options available on request) |
| Max. flow capacity | depending on application |
| Air drive pressure | min. 1 bar - max. 8 bar |
| Dimensions w/o case (W x D x H) | 900 x 400 x 500 mm |
| Dimensions w. case (W x D x H) | 1030 x 620 x 720 mm |
| Weight w/o case | approx. 56,5 kg |
| Weight w. case | approx. 114 kg |
