Station MPLV4/0,75L/40bar
MAXIMATOR PLV series air amplifiers are suitable for the compression of pressurised air or nitrogen. The units are capable of increasing normal pressures of 4 bar or 6 bar to the desired final pressures. The Air Amplifiers are operated with normal shop air and are provided with a variety of amplification ratios.

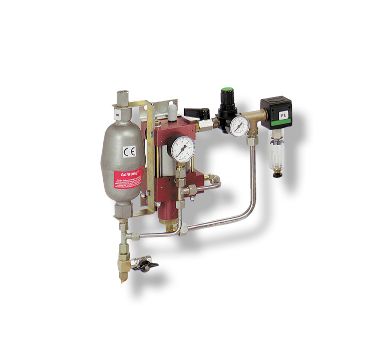

The Air Amplifier Station Type MPLV4/0,75L/40bar mainly consists of:
- MAXIMATOR-Air Amplifier type MPLV-4
- Inlet filter with shut off valve
- Pressure regulator with gauge 0-10 bar ø 40
- Pressure storage 0,75 liter / 40 bar
- Safety valve adjusted to 40 bar
- Gauge 0-60 bar ø 50
- Drain valve
The Station is complete assembled, tested and ready for connection.
| Type | MPLV-4/0,75L/40bar |
|---|---|
| Pressure ratio | 1:4 |
| Outlet P max | approx. 40 bar |
| Utilities | Air |
| Max. Flow | Depending on the application |
| Connection Inlet PL | BSP 3/8" |
| Connection Outlet B | BSP 1/4" |
| W x D x H | 370x 400 x 130 |
| Weight | +/- 5,5kg |
| Air drive pressure | min. 1 bar max. 10 bar |
